To strengthen crumbling concrete blocks and prevent further deterioration, you can use a consolidant or stabilizing product that penetrates the surface and binds the loose material together.
Table of Contents
I live in an old Georgian house with an extension built many years ago, which is now my utility room. A few of the concrete blocks from which the exterior walls are made, are very soft due to an incorrect mix when they were cast originally many years ago. Some are so soft, they will crumble when a hand is run across the surface.
Fortunately, their location is not supportive of other parts of the building and I decided simply to strengthen crumbling concrete surfaces against further deterioration.
Some Effective Options To Strengthen Crumbling Concrete
How To Strengthen Crumbling Concrete
1. Silicate-Based Consolidants
- What it is: Products like ethyl silicate or potassium silicate (often called water glass) are widely used for consolidating porous materials like stone, brick, and mortar.
- How it works: The silicate penetrates the surface and reacts chemically with the material’s mineral components, forming a solid, durable bond.
- Advantages:
- Deep penetration into the block.
- Long-lasting protection.
- Non-toxic and environmentally friendly.
- Application: Use a low-pressure sprayer to apply, allowing the solution to soak deeply into the surface. Multiple applications may be needed, depending on the porosity.
2. Acrylic or Epoxy Consolidants
- What it is: Acrylic-based or epoxy resins are synthetic stabilizers that bond to the material’s particles, providing strength.
- How it works: These consolidants create a durable film that reinforces the block while sealing it from moisture.
- Advantages:
- Excellent binding properties.
- Highly resistant to environmental factors.
- Application: Mix according to the manufacturer’s instructions and spray or brush onto the blocks. Be cautious not to over-apply, as it may create a glossy finish or limit breathability.
3. Limewater (for Historical Walls)
- What it is: Limewater is a natural solution made by dissolving lime (calcium hydroxide) in water, often used for conservation in historical masonry.
- How it works: Limewater penetrates and deposits calcium carbonate in the porous material, strengthening it.
- Advantages:
- Suitable for historical or heritage structures.
- Breathable and compatible with traditional materials.
- Application: Spray multiple coats, allowing each coat to dry before applying the next.
4. Nano-Lime (Advanced Option)
- What it is: A modern, highly effective form of lime that uses nanoparticles to penetrate deeply into soft materials.
- How it works: Nano-lime stabilizes the surface by forming calcium carbonate upon contact with air.
- Advantages:
- Deeper penetration than traditional lime.
- Ideal for delicate or historically significant materials.
- Application: Spray or brush onto the surface in thin layers.
5. Silicone-Based Water Repellents
- What it is: These are hydrophobic treatments that prevent water penetration while providing some strengthening effect.
- How it works: Silicone repels moisture, reducing further deterioration caused by freeze-thaw cycles or water infiltration.
- Advantages:
- Easy to apply.
- Protects against weathering.
- Application: Spray evenly across the surface for uniform coverage.
Preparation Tips:
- Clean the Blocks: Remove any loose debris or dirt using a soft brush or low-pressure water spray. Avoid high-pressure cleaning as it can damage the fragile surface.
- Dry the Surface: Ensure the blocks are dry before applying the treatment for maximum penetration.
- Test a Small Area First: Always test the product on a small, inconspicuous section to confirm compatibility and desired results.
Maintenance:
- Regularly inspect the wall for signs of further deterioration.
- Consider applying a breathable sealant after consolidation to provide long-term protection from weathering.
For historical or heritage walls, consult with a conservation expert to ensure the chosen method is appropriate for the material and context.
The PVA Option
Polyvinyl acetate (PVA), commonly used in adhesives like wood glue or sealants, can be used to stabilize and consolidate soft building materials, but it is not always the most suitable option depending on the circumstances. Here’s a breakdown of PVA’s pros and cons for this application:
Advantages of PVA:
- Affordable and Readily Available
PVA is inexpensive and easy to find in hardware stores, making it a quick solution for DIY projects. - Adhesive Properties
It can bind loose particles together, creating a more solid surface. - Dilutable with Water
PVA can be diluted (usually 1 part PVA to 4–5 parts water) to improve penetration into porous blocks. - Easy Application
It can be sprayed or brushed onto the surface, soaking into the decomposed blocks.
Disadvantages of PVA:
- Limited Penetration
PVA does not penetrate deeply into porous materials like silicate-based or lime-based consolidants, meaning the strengthening effect is superficial unless the mix is weak. This can of course, be partly accounted for by several coats of a weak mixture and for my needs I decided to go with this option as the other recommended solutions were unavailable in my location. - Non-Breathable
PVA creates a plastic-like film that seals the surface, which can trap moisture inside the block. This can lead to long-term problems, such as freeze-thaw damage or further degradation from internal moisture. Again this can be partly solved by carefully examining the blocks and making sure to leave areas where any residual moisture can escape. - Breathable Areas
My blocks were not rendered on all sides (only the outer was visibly crumbling) and the inner side has an air gap between it and a drywall, so moisture can easily escape from there. - Not UV Stable
Over time, PVA can degrade when exposed to sunlight, reducing its effectiveness. Again, my blocks were rendered after treatment by the application of aircrete as a finishing coat, so they are never exposed to sunlight. - Incompatibility with Traditional Materials
For historical or heritage structures, PVA is not suitable because it is non-reversible (cannot be easily removed) and is chemically incompatible with materials like lime mortar or stone. I found that aircrete is very forgiving and as the block surfaces are so course, the adhesion is excellent. No worries there.
When PVA Might Be Suitable:
- For non-historic walls or temporary repairs where long-term preservation is not critical.
- When a low-cost, quick fix is needed to stabilize loose material.
- If the wall is indoors or protected from UV light and excessive moisture.
How to Use PVA for Soft Wall Blocks:
- Dilute the PVA:
Mix 1 part PVA with 4–5 parts water to allow better penetration into the block surface. - Clean the Blocks:
Remove loose debris and dust before application. - Apply in Thin Layers:
Spray or brush the solution onto the surface, allowing each layer to soak in and dry before applying the next. - Monitor the Results:
Ensure no moisture is trapped within the blocks and that the application is effectively stabilizing the material.

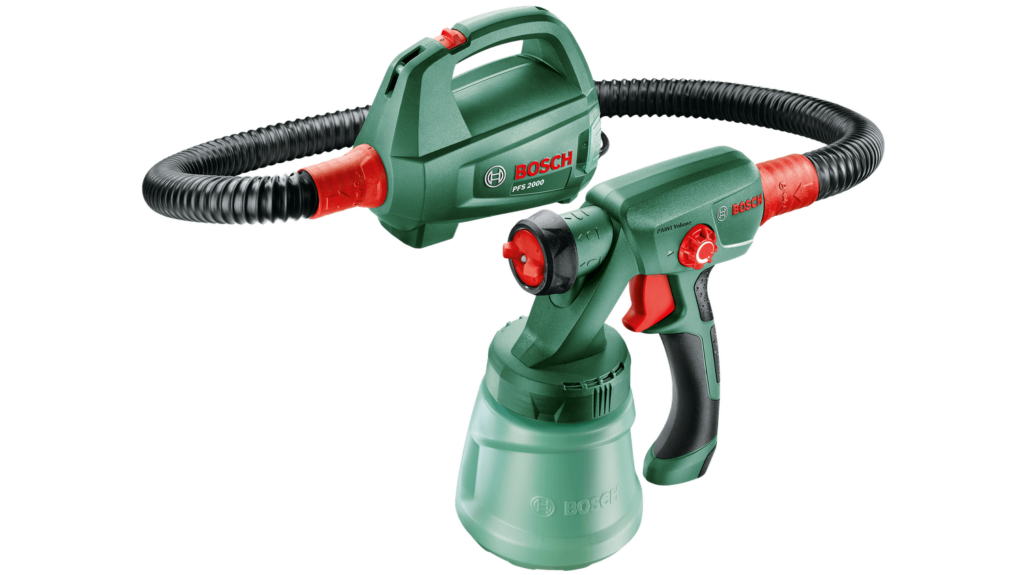

An Electric Spray Gun Is An Excellent Way To Strengthen Crumbling Concrete
While PVA can work as a quick and inexpensive solution for consolidating soft wall blocks, it is generally not the best option for long-term durability, breathability, or compatibility with traditional materials. Silicate-based consolidants or lime-based solutions are better choices if you want a deeper, more permanent fix that doesn’t trap moisture. If using PVA, consider its limitations and ensure the area is well-protected from environmental exposure.
To rebuild the surface after treatment, I recommend spraying the surface with “aircrete”. Aircrete is a lightweight but strong concretion made from nothing more than air and cement. Read the article here.
