Comparison Table Of Common Pipe Insulation Materials To Win The Frost Battle

Here’s a comparison table of common pipe insulation materials for protecting water delivery pipes from frost and cold. The table includes insulation values (thermal conductivity), recommended thicknesses, and suitability for varying temperature conditions.

Material Type	Thermal Conductivity (W/m·K)	Recommended Thickness	Temperature Suitability	Features and Notes
Foam (Polyethylene)	0.035–0.040	13–25 mm for temperatures down to -10°C, 30+ mm for below -15°C	Mild to moderate cold climates	Lightweight, cost-effective, easy to install, resistant to moisture. Not ideal for high temperatures.
Rubber (EPDM)	0.033–0.038	13–19 mm for moderate frost, 25+ mm for extreme frost	Severe frost conditions	Highly flexible, UV-resistant, durable, and good for both indoor and outdoor pipes.
Fiberglass Wrap	0.030–0.040	25–50 mm	Extreme cold areas	High thermal resistance, good for lofts and basements. Requires vapor barrier to prevent moisture.
Foil-backed Foam	0.032–0.036	13–25 mm	Moderate climates	Combines insulation with a reflective barrier, good for preventing radiant heat loss.
Heat Tape/Cable	N/A	N/A	Severe frost	Maintains warmth by actively heating pipes. Best for exposed pipes in extreme conditions.
Closed-cell Spray Foam	0.025–0.035	Minimum 25 mm	Severe frost	Excellent insulation value, fills gaps completely, but requires professional application.
Mineral Wool	0.035–0.045	40–50 mm	Harsh cold areas	High thermal resistance, fire-resistant. Must be protected with an outer jacket for outdoor use.
Armaflex (Specialised Foam)	0.034–0.036	13–25 mm	Mild to extreme frost	Offers good flexibility and insulation, resistant to condensation and outdoor conditions.

How to Choose the Right Pipe Insulation Material

• Mild Climates: Polyethylene foam is economical and sufficient for mild frost areas.
• Moderate Climates: Rubber insulation or foil-backed foam provides added durability and UV resistance.
• Severe Climates: Fiberglass or closed-cell spray foam is ideal for extreme temperatures.
• Exposed Pipes: Use heat tape or cables in combination with insulation for outdoor pipes.

Notes on Thickness:

• Thickness Matters! Always match insulation thickness to your region’s lowest winter temperatures. Thicker insulation is required in colder regions to minimize heat loss effectively.
• Joint Coverage: Insulation must cover pipe joints and fittings completely to avoid weak points where frost could penetrate.

Techniques for Insulating Pipes

Proper pipe insulation requires more than selecting the right materials—it involves correct application to ensure the insulation remains effective over time. Below are techniques and steps for optimal insulation:

1. Measure and Plan

• Accurate Measurements: Measure the diameter and length of your pipes before purchasing insulation to ensure a snug fit and reduce waste.
• Account for Fittings and Valves: Insulate all pipe joints, bends, and valves, as these areas are particularly vulnerable to heat loss and freezing.

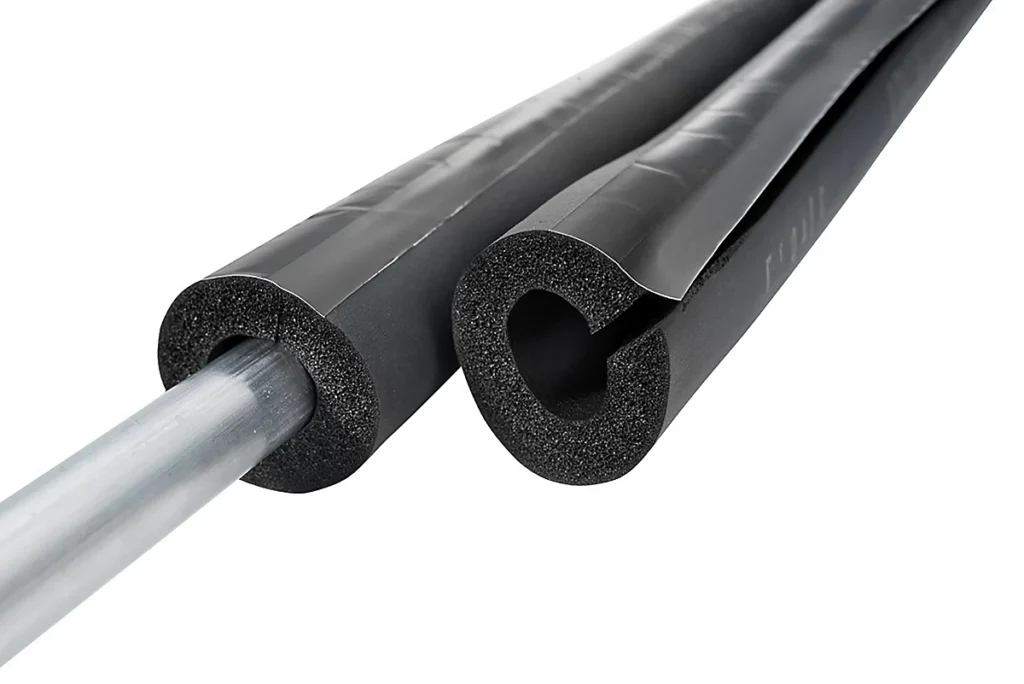

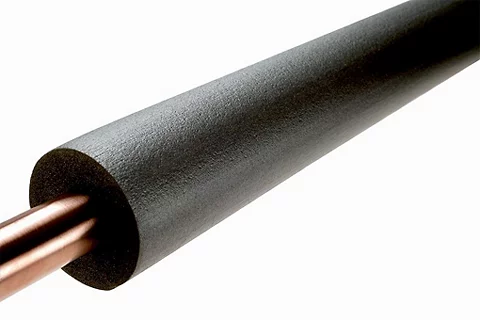

2. Apply Pre-Slit Insulation Tubes

• Use pre-slit foam insulation tubes (e.g., polyethylene or rubber) for ease of installation.
• Steps:
  • Cut the tubes to the exact pipe length if necessary.
  • Wrap the insulation around the pipe, ensuring a tight fit.
  • Seal seams with waterproof adhesive tape to prevent moisture infiltration.

3. Wrap with Fibreglass Insulation

• Best for uneven surfaces, such as around bends and joints.
• Steps:
  • Wrap the pipe in fibreglass insulation, overlapping each layer by 50%.
  • Cover with a vapour barrier (like plastic sheeting) to prevent condensation and moisture damage.

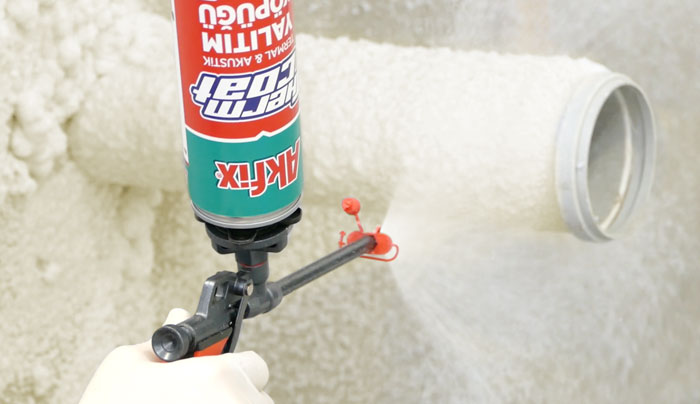

4. Use Spray Foam for Hard-to-Reach Areas

• Ideal for irregularly shaped or inaccessible pipes.
• Steps:
  • Spray the foam evenly over the pipe surface.
  • Allow it to expand and cure. Trim excess foam for a neat finish.

---

5. Add an Outer Jacket for Outdoor Pipes

• Exposed pipes should be further protected with an outer layer, such as:
  • UV-resistant rubberized sleeves
  • Aluminum or plastic cladding
• This prevents weather damage and enhances insulation performance.

6. Use Heat Tape or Cable for Extreme Conditions

• Heat tape or cables are supplemental tools for preventing freezing in extremely cold regions.
• Steps:
  • Wrap the heat tape around the pipe (following the manufacturer’s instructions).
  • Cover with foam insulation for added protection and efficiency.
• Note: Ensure heat cables are installed with proper electrical safety precautions.

Regional Considerations for Pipe Insulation

The climate in your region significantly impacts the type and thickness of pipe insulation required.

Mild Climates (e.g., Southern England)

• Materials: Polyethylene foam or rubber insulation tubes.
• Thickness: 13–25 mm.
• Focus Areas: Protect exposed outdoor pipes and those in unheated spaces like garages.

Moderate Climates (e.g., Midlands, Ireland)

• Materials: Rubber or foil-backed foam for better durability.
• Thickness: 25 mm for exposed pipes.
• Focus Areas: Insulate pipes in lofts, basements, and exterior walls where heat loss is significant.

Severe Climates (e.g., Scotland, Northern Europe, Northern USA)

• Materials: Fiberglass wraps, Armaflex, or closed-cell spray foam.
• Thickness: 30+ mm for extreme frost.
• Focus Areas: Outdoor pipes, underground pipes (when exposed), and loft spaces with minimal heating.

Underground Pipe Depths

• In the UK, water pipes should be buried at least 750 mm (2.5 feet) below the surface to prevent freezing.
• In colder regions (e.g., parts of Scotland), deeper burial (up to 900 mm or 3 feet) may be necessary.

Preventive Measures for Frozen Pipes

• Check for Leaks: Before insulating, repair any existing pipe leaks to avoid water damage under the insulation.
• Regular Maintenance: Inspect insulated pipes annually, particularly outdoor ones, to ensure the material hasn’t degraded or shifted.

Checklist for Insulating Pipes Against Frost

1. Assessment

• Identify all exposed pipes: outdoor pipes, pipes in lofts, basements, garages, and crawlspaces.
• Measure pipe lengths and diameters to determine insulation material and quantity required.
• Check for pre-existing damage or leaks in pipes and repair them before insulation.

2. Materials

• Purchase insulation materials appropriate for your climate:
  • Polyethylene foam tubes (mild to moderate frost).
  • Rubber insulation (EPDM) (moderate to extreme frost).
  • Fiberglass wrap with vapour barrier (extreme cold areas).
  • Spray foam for irregularly shaped or hard-to-reach pipes.
• For outdoor pipes, purchase protective jackets or cladding (e.g., aluminium or UV-resistant rubber).
• Heat tape or cables for areas prone to freezing.

3. Tools For Pipe Insulation

• Insulation adhesive tape or cable ties for securing materials.
• Utility knife or insulation cutter for precise cuts.
• Measuring tape for accurate length and thickness assessments.
• Heat gun (optional) to seal edges if using self-sealing insulation.

4. Installation

• Ensure pipes are clean and dry before applying insulation.
• Cut insulation tubes to fit snugly around the pipes.
• Seal joints and edges with adhesive tape or a vapour barrier to prevent gaps.
• For outdoor pipes, ensure weatherproof jackets are securely fitted.

5. Maintenance

• Inspect pipe insulation annually, especially before winter.
• Replace or repair any damaged insulation promptly.
• Test heat cables to ensure they’re functioning correctly before cold weather.

Sourcing Pipe Insulation Products

Online Retailers

1. Screwfix (UK)
   • Wide range of pipe insulation products, including foam tubes and rubber insulation.
   • Heat tape and cladding materials are also available.
     Visit Screwfix
2. Toolstation (UK)
   • Affordable options for pipe insulation tubes, adhesive tape, and tools. Visit Toolstation
3. Amazon UK
   • Offers a variety of pipe insulation materials, including fibreglass wraps, rubber sleeves, and heat cables. Visit Amazon UK
4. B&Q (UK)
   • Great for DIY enthusiasts, with insulation tubes and protective jackets in stock. Visit B&Q

Specialist Suppliers

1. Armacell
   • Manufacturer of professional-grade rubber and foam insulation (e.g., Armaflex).
     Visit Armacell
2. Kingspan Insulation
   • High-performance solutions, including pre-insulated pipe systems. Visit Kingspan

Pricing Comparison of Insulation Materials

Material	Approx. Price per Meter	Best Use Case
Foam Pipe Insulation	£1.50–£3.00	General use for indoor/outdoor pipes
Nitrile Rubber Insulation	£2.00–£4.50	Outdoor pipes due to flexibility and UV resistance
Fibreglass Insulation	£3.00–£6.00	High-temperature or industrial use
Mineral Wool	£4.00–£8.00	Pipes in extreme temperatures or noise reduction
Armaflex Tuffcoat	£8.00–£12.00	Weather-resistant and durable for outdoor pipes

(Source: Based on prices from BuyInsulationOnline.co.uk and Pipelagging.com)

Step-by-Step Pipe Insulation Installation Guide

1. Gather Materials:

• Pipe insulation of choice
• Utility knife or insulation cutter
• Adhesive tape or zip ties
• Weatherproof insulation tape for outdoor use

2. Measure and Cut:

• Measure the length of pipes to determine the required insulation.
• Cut insulation material to the appropriate length using a utility knife.

3. Apply Insulation:

• Open the slit on pre-slit insulation materials (most foam and nitrile options are pre-slit).
• Fit the insulation snugly around the pipe. For outdoor pipes, ensure overlapping seams for maximum coverage.

4. Secure and Seal:

• Use adhesive tape or zip ties to secure the insulation in place.
• For outdoor installations, cover the seams with weatherproof insulation tape to protect against moisture and UV damage.

5. Test and Inspect:

• After installation, check for gaps or loose sections that may reduce insulation efficiency.
• Inspect annually, especially for outdoor pipes, to ensure the insulation remains intact.

Regional Considerations

• Cold Climates: Opt for thicker insulation (e.g., 25–30 mm foam or nitrile rubber) to handle subzero temperatures.
• Humid Regions: Use closed-cell materials like nitrile rubber to resist condensation.
• Severe Winters: Combine insulation with trace heating cables for optimal frost protection.

For additional products, suppliers like Buy Insulation Online and Pipelagging.com offer extensive options for pipe insulation, including durable Armaflex products for extreme outdoor conditions and fibreglass for loft spaces.
